Cold Sensor Specifications

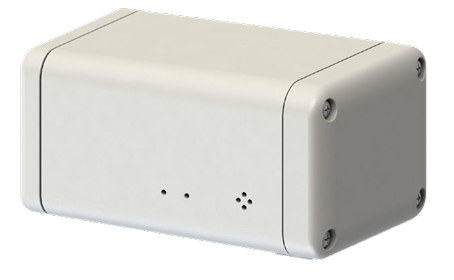

Technical details on the Tektelic Tundra Cold Sensor

Table of Contents

Basic details

The Tektelic Tundra cold sensor works on the same LoRaWAN network as Conserv's Smart Collection Sensors (SCS). It can be set to report every 15 minutes just like the Conserv SCS.



    Features

    • Up to 15 Year Battery Life (Dependent on operating temperature and number of readings sent per day)
    • 125 Days/3000 Entries of Stored Data
    • Optional External Thermistor Probe
    • Small Form Factor for Diverse Deployments
    • Easily Integrated into LoRaWAN® Networks
    • Internal Antenna
    • Ambient Tempature & Humidity Monitoring

    General System Parameters

    Operational Temperature -40°C to +85°C
    Ingress Protection IP67
    Size 67 x 43 x 36 mm
    Battery C-Cell lithium battery



    LoRa Parameters

    RF Power Up to 20 dBm
    RF Sensitivity Up to -137dBm (SF12, 125kHz)
    ISM Band All Global ISM Bands
    Antenna Internal
    LoRa Device Class Class A

    Regulatory Compliance

      Safety IEC 62368-1 (CE)
      Regulatory ETSI EN 300 220
      ETSI EN 301-489-1/-3
      FCC 15.247          FCC 15.209
      RSS-247                RSS-GEN



      Manufacturer documentation
