LWL02 Leak Detector Specifications

Technical details on the Dragino LWL02 leak detector

Table of Contents

Basic details

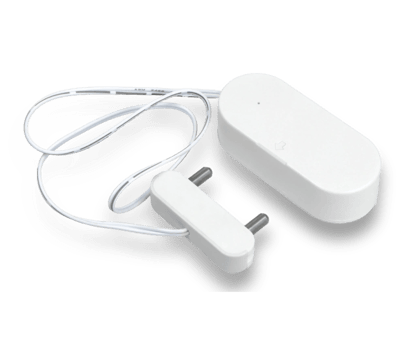

The Dragino LWL02 works on the same LoRaWAN network as Conserv's Smart Collection Sensors (SCS). When it detects water between the two metal probes, the LWL02 will trigger a water leak event and send an uplink to IoT server via LoRaWAN network.


Conserv-Leak-Sensor-For-Collections-Care-Environmental-MonitoringBattery life

The LWL02 uses 2 AAA alkaline batteries, which the manufacturer indicates will result in a 2-10 year battery life (depending on how often it checks in with the network). For a 10 year life, it checks in once every 24 hours. Conserv changes this factory setting to check in every 90 minutes, which brings the battery life to around 3 years.

Features

  • LoRaWAN Class A v1.0.3
  • Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865/RU864
  • SX1262 LoRa Core
  • Water Leak detect
  • 2 x AAA LR03 Batteries
  • AT Commands to change parameters
  • Uplink on periodically and open/close action
  • Remote configure parameters via LoRa Downlink
  • Firmware upgradable via program port

Storage and operation temperatures

The working temperature range of the device depends on the batteries used.
  • Normal AAA batteries can support -10 ~ 50°C working range.
  • Special AAA batteries can support -40 ~ 60 °C working range. For example: Energizer L92

Manufacturer documentation
