LHT65 Outdoor Sensor Specifications

Technical details on the Dragino LHT65 outdoor sensor

Table of Contents



Basic details

The Dragino LHT65 works on the same LoRaWAN network as Conserv's Smart Collection Sensors (SCS). The sensor will take a reading every 20 minutes. It is waterproof and has been designed to be placed outside.

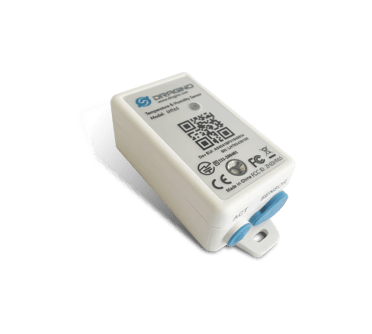

Reference Image

Conserv-Outdoor-Sensor-For-Collections-Care-Environmental-Monitoring

Battery life

    The LHT65 uses a built-in non-rechargeable lithium battery, which the manufacturer indicates will result in a 10 year battery life (depending on how often it checks in with the network).

    Features

    • Wall mountable
    • LoRaWAN Class A protocol
    • AT Commands to change parameters
    • Remote cofigure via LoRaWAN Downlink
    • Firmware upgradable via program port
    • Built-in 2400mAh battery for over 10 year use
    • Built-in Temperature & Humidity sensor
    • Optional External Sensors
    • Tri-color LED to indicate status
    • 3200 set sensor record with time stamp

    Sensor specs

    Built-in Temperature Sensor

    • Range: -40 ~ +80 °C
    • Accuracy: ± 0.3°C
    • Resolution: 0.01°C

    Built-in Humidity Sensor

    • Range: 0 ~ 99.9%
    • RH Accuracy: ± 3%RH (10 ~ 90%RH)
    • Resolution: 0.04% RH
    • Response Time: < 5s

    Storage and operation temperatures

    • Operation Temperature: -40 ~ 80 °C
    • Operation Humidity: 0~99.9%RH (no Dew)
    • Storage Temperature: -10 ~ 45°C

    Manufacturer documentation
